100cm Manpack Antenna

*Photo shown here is not to scale, shown for illustration only.
*Actual product may vary depending upon configuration and version.

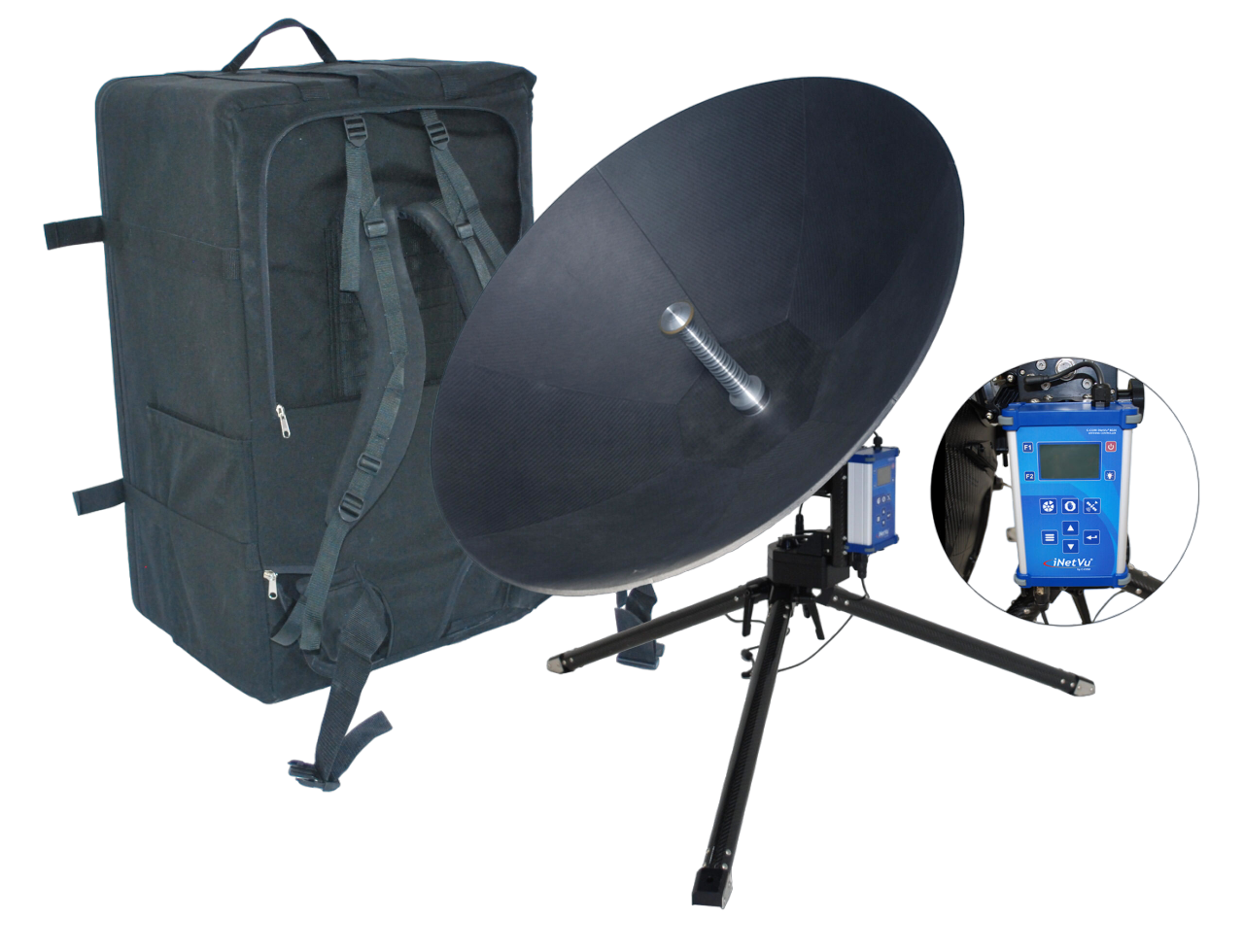

The iNetVu® MP-100-MOT is a fully motorized, auto-acquire, 100cm carbon fiber manpack antenna. This robust and lightweight system will point to any programmed satellite with just the push of a button on the NEW iNetVu® 8020 Controller. C-COM’s highly portable, multi-segment manpack can be hand-carried by one person and assembled in less than 10 minutes with no tools required.

Features:

  • 100 cm 7-piece carbon fibre reflector
  • Single Backpack Case Solution
  • Operates in Ku, Ka or X band
  • Designed to work with the iNetVu® 8020 Controller
  • Monitor and Control Via Front Panel display or Web Interface
  • 2 or 3 Axis Motorization
  • Supports manual control when required
  • One button, auto-pointing controller acquires Ku-band satellite within 30 seconds
  • Captive hardware / fasteners
  • No tools required for assembly / disassembly
  • Set-up time less than 10 minutes, one person job
  • 1 Year Standard Warranty
Download Product Datasheet:
100cm Manpack Antenna_datasheet.pdf
