4G LTE based Wireless Broadband Access (TJ6003W EPC)

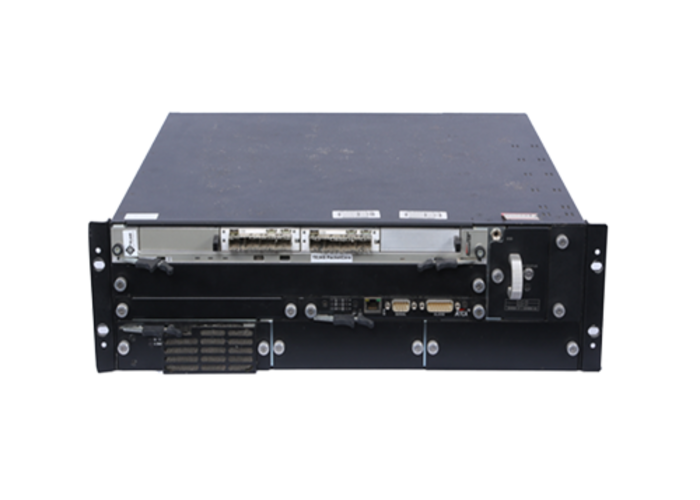

TJ6003W is a compact 19-inch rack mountable form factor system, yet highly scalable to provide all the functions of the 3GPP Enhanced Packet Core. The TJ6003W Tejas EPC system is scalable to 200,000 subscribers within the same form factor. Scalability is also possible in terms of backhaul data rate.For fault tolerance, the EPC system supports “high-availability” operation, with redundancy in both the control plane and the data plane.Tejas EPC consists of five principal EPC components: MME, SGW, PGW, HSS, and PCRF. MME, HSS and PCRF are the control plane components and SGW and PGW handle the data plane traffic. All these EPC components run in real-time on the Tejas embedded platform.Tejas EPC platform is used in conjunction with an external Element Management System (EMS), a web-based interface.

Highlights:

• Low foot-print highly scalable platform from 1,500 users to 200,000 users
• 3U Standard 19 inch rack mountable ATCA chassis
• Optional redundancy for power input and chassis management functionality
• Shelf assemblies are designed usinField Re-placeable Units (FRU) enabling easy mainte-nance and high availability
• Single box solution incorporating all EPC com-ponents - MME, PCRF, HSS, S-GW and P-GW
• High Availability option for both control plane and data plane on the same chassis
• Highly distributed architecture – data plane and control plane can optionally be rede-ployed to physically reside in different loca-tions
