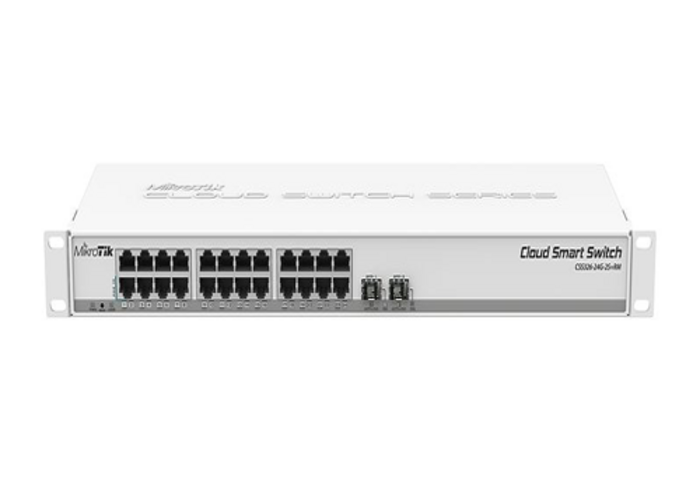

MikroTik CRS326-24G-2S+RM Switch

This is a SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features! It has an additional CPU unit that allows you to run the the RouterOS operating system on this device, for those who prefer the RouterOS GUI interface to configure switching features. This new switch is also capable to work in routing mode for a few configurable ports.The “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Features:

  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K simultaneous VLANs
  • Port isolation
  • Port security
  • Broadcast storm control
  • Port mirroring of ingress/egress traffic
  • Rapid Spanning Tree Protocol
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP v1
  • •Web-based GUI
