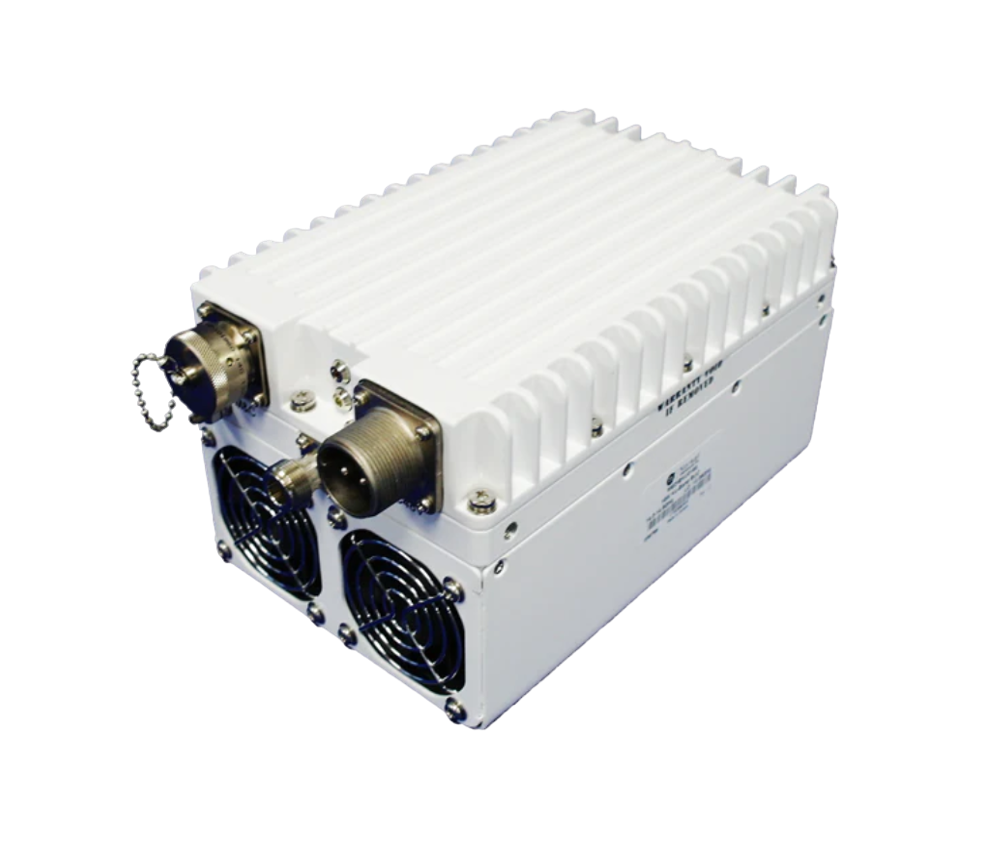

Norsat 16W Ku Band BUC

The Norsat Ku-band MEDIAN series BUCs have been designed with both performance and economy in mind, making them ideal for VSAT applications where size, weight and power constraints are not as stringent

• Norsat MEDIBKU016S 16 Watt Ku band BUC
• Type N Female Input Connector
• RF Output Frequency: 14.0 to 14.5 GHz  (See MEDIBKU016E for 13.75 to 14.5 GHz model)
• IF Frequency: 950 to 1450 MHz
• L.O. Frequency 13.05 GHz
• Output Power @ P1dB: 42 dBm min
• Power Consumption: 135W at rated power - 120W at 3 dB back-off from rated
