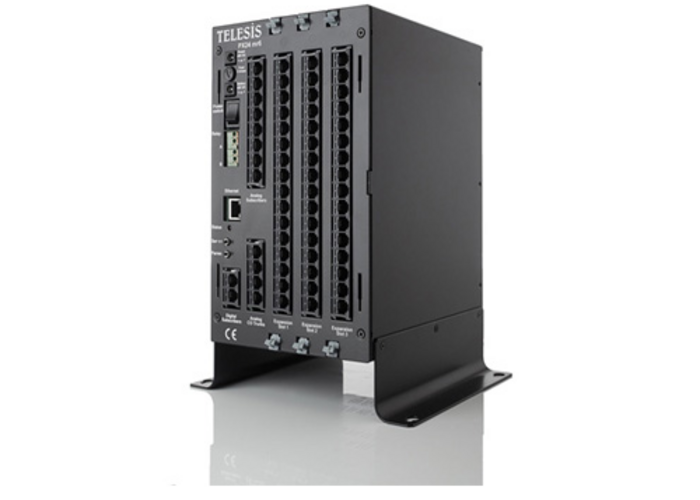

Telesis PX24M Small - Medium Capacity Hybrid IP PBX

The PX24M Hybrid IP PBX is the medium capacity system in the PX24 family. It is an ideal Business Phone System for small and medium enterprises and businesses, wishing to migrate to IP PBX systems with keeping the traditional TDM interfaces.

Standard Hardware and Software Features

Each PX24M Hybrid IP PBX Business Phone System comes with the following Standard hardware and software features:

• Xymphony operating firmware
• 4 analog DC loop trunks (i.e., CO trunks or FXO ports)
• 2 digital subscribers
• 8 analog subscribers (FXS ports)
• 2 user controlled relays (for various purposes like door opening)
• 3 expansion slots
• One channel Telesis WebPhone
• Caller ID encoders (transmitters)
• Caller ID decoders (receivers)
• DTMF transceivers
• HDLC circuits for optional BRI ISDN card
• Conference hardware
• Integrated CMDR (call records) buffer
• Integrated DVR (digital voice recorder) with 100 hours capacity
• 4 playing and 4 recording channels for the DVR
• Personal conversation recording capability
• Integrated Voice Mail (VMail)
• Integrated Automatic Call Distributor
• Integrated Signaling / Protocol Analyzer
• Integrated Web server (in various languages like Czech, English, French, Georgian, German, Polish, and Turkish) for management
• SNMP (simple network management protocol) support for management
• Integrated API server for unlimited number of Clients
• Xymphony TSP for Windows API
• Integrated H.323 gatekeeper for 160 H.323 VoIP users
• Integrated SIP registrar for 160 SIP VoIP users
• Integrated Telesis xSIP (eXtended SIP) registrar for numerous xSIP VoIP users
• Integrated FTP client to upload automatic conversation records to an FTP server
• Data link for adjunct call processing servers
• XDP (Xymphony Discovery Protocol) support
• AC-DC power converter
• Integrated 48 VDC battery charger
• Installation accessories
• Hundreds of supplementary services for analog, digital and VoIP users

Optional Hardware and Software Features

PX24M Hybrid IP PBX Business Phone System owners may also benefit the following Optional hardware and software features:

• Telesis digital sets, which can connect to the digital subscriber ports over a single pair of wires
• Telesis xSIP Video phones
• Telesis xSIP VoIP phones
• Telesis xSIP VoIP softphones
• Licenses for IP-to-TDM and TDM-to-IP gateway channels, which allow call routing between TDM and IP (SIP, H.323) users
• Licenses for xSIP VoIP phone users
• Additional licenses for Telesis WebPhone calls
• License for AES-256 encryption for VoIP calls
• Licenses to expand playing and recording channels in the integrated DVR
• Licenses for automatic voice (conversation) recording on pre-selected TDM ports or H.323 entities or SIP entities
• License for PMS (property management system) data link
• Expansion cards
