Telesis X1 Large Capacity TDM IP Telephony Switch

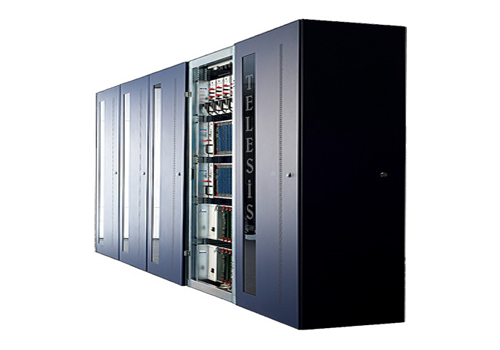

*Photo shown here is not to scale, shown for illustration only.
*Actual product may vary depending upon configuration and version.


Hallmarks

  • Carrier class system
  • All-in-one solution for TDM and IP Telephony
  • 14,400 TDM ports
  • 8,192 IP users
  • 2,160 IP-TDM gateway channels (concurrent IP to TDM and TDM to IP calls)
  • SIP, H.323, xSIP support
  • SS7, DSS1, QSIG, R1, R2, CAS, CIS V5.2 support
  • Integrated DVR (digital voice recorder) for:
  • Personal conversation recording
  • Automatic port recording
  • Voice Mailing
  • ACD (automatic call distribution)
  • API server
  • Advanced routing algorithms for both IP and TDM calls
  • Alternate routing
  • Numerous user services
  • Web based management
  • Advanced billing system and reporting for billing, statistics, management, and alarming
  • Hot stand-by redundancy

System Capacity and Applications

Telesis X1 TDM - IP Telephony Switch capacity depends on the demands and the place of the system in the network. Particular values are defined for each system. The X1 allows, in an economic way, the realization of IP and TDM switching system in the capacity range of thousands of subscriber lines, thousands of trunks, and thousands of IP users. In order to facilitate expansions of the system in future, the X1 TDM - IP Telephony Switch is built on a modular principle. It is possible to distinguish functional units that can be replaced and/or expanded.

The Telesis X1 TDM - IP Telephony Switch has a modular structure. The installation of the system or expanding an already operating one by adding subscriber and/or trunk line interfaces is simple and fast. The X1 TDM - IP Telephony Switch allows thousands of H.323 endpoints to be registered with its integrated gatekeeper. These endpoints may be IP trunk routes and/or H.323 hard/soft phones with their own IP addresses. The X1 can also register to multiple gatekeepers simultaneously. Similarly, the X1 allows thousands of SIP user agents to be registered into its integrated registrar. These user agents may be IP trunk routes and/or SIP hard/soft phones with their own IP addresses. The X1 can also register to multiple registrars simultaneously. In an X1, TDM circuits, H.323 endpoints, and SIP user agents exist altogether.

Furthermore, Telesis proprietary xSIP (eXtended SIP) protocol allows value-added services to be functional over IP.

Utilities for System Owners and Administrators

XTools is a next-generation utility software developed by Telesis A.S. to be used with Telesis X1 TDM - IP Telephony Switch. Moreover, it is freeware.

Experts, as well as novices, may get the benefits of XTools. An easy to use and flexible toolkit allows system owners and administrators:

to discover Xymphony compatible Telesis equipment in the local network and edit their settings
to trace and capture telephony events and call control messages of selected TDM users
to download CMDR (Call message detail recording) records
to download automatic voice recordings
to generate formatted CMDR reports
to trace, select, view or backup CMDR database
to trace, select or play voice recordings

By means of expansions and adaptations it is possible to use the X1 as:

  • Carrier grade Large Capacity TDM and IP Telephony System
  • Hybrid TDM and IP Telephony System for large enterprises
  • SSP, Service Switching Point for SS7
  • STP, Signal Transfer Point for SS7
  • Central Office
  • Toll switch
  • Tandem switch
  • Transit switch

Some IP Telephony Applications

10/100 BaseT ethernet interfaces on the Telesis X1 TDM - IP Telephony Switch provide numerous IP Telephony applications and system management solutions. Some of these are:

  • Web based system management
  • SNMP (simple network management protocol) support for management
  • CMDR (detailed call records) collection
  • System alarm and warning messages collection
  • Statistics data collection
  • Voice (conversation) records collection
  • Xymphony API server and client communication
  • H.323 protocol support. Connections between the system and H.323 entities.
  • SIP Session Initiation Protocol support. Connections between the system and SIP entities.
  • xSIP (eXtended SIP). Connections between the system and xSIP terminals

TDM and IP Interfaces or Users

The Telesis X1 TDM - IP Telephony Switch supports, at least, the following hardware interfaces and signaling:

  • analog subscribers (extensions, FXS, central-battery trunks in some other terminology)
  • analog DC loop trunks (FXO in some other terminology)
  • 4B+1D digital subscribers
  • SIP  entities
  • H.323 entities
  • RDTT ports (ring-down tie-trunks, local-battery trunks in some other terminology)
  • analog E&M trunks
  • BRI ISDN S0 ports (basic rate interface - user)
  • BRI ISDN T0 ports (basic rate interface - trunk)
  • BRI ISDN Uk0 ports
  • E1 CAS 2 bit CIS signaling interfaces
  • E1 CAS 1 bit E&M emulating interfaces
  • E1 CAS 2 bit ITU-T R1 signaling interfaces
  • E1 CAS 2 bit ITU-T R2 signaling interfaces
  • E1 ISDN DSS1 Primary rate NT signaling interfaces
  • E1 ISDN DSS1 Primary rate TE signaling interfaces
  • E1 ISDN QSIG Primary rate NT signaling interfaces
  • E1 ISDN QSIG Primary rate TE signaling interfaces
  • E1 ITU-T SS no:7 ISUP signaling interfaces
  • E1 ETSI V5.2 Local Exchange LE signaling interfaces
  • E1 ETSI V5.2 Access Network AN signaling interfaces
