TJ1400P-M4 Data Center Top-of-Rack 10G Switch

TJ1400P-M4 Series of switches are designed for Data Center and Cloud Deployments. The TJ1400P-M4-48DQ-S model is a top-of-rack (ToR) switch with 48 SFP/SFP+ ports capable of supporting 1G/10G/25G Ethernet and 8 QSFP uplink ports of 40G/100G. The switch is compatible with the Open Compute Project Specifications and comes loaded with a software feature set required to support cloud and data-center deployments. However, Tejas is open to working with customers to support use of an Open Stack of the customer’s choice.

Hardware Features

48 x SFP+ switch ports, supporting 10 GbE (DAC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX).
4 x 40 QSFP+ switch ports, supporting 40 GbE (DAC, 40GBASE-SR4/LR4) or 4 x 10 GbE (DAC or fiber breakout cable)
Port Grouping to group 4 x 10G ports into one 40G port at the physical layer for maximum bandwidth utilization, and for 300m optical reach over MMF.
Full line-rate Layer 2 or Layer 3 forwarding of 2Tbps Gbps full-duplex
Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.

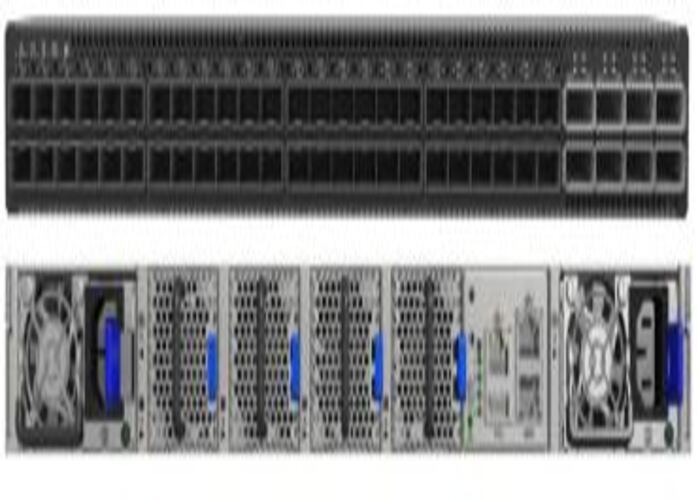

All ports on front; PSUs, fan tray on rear.
Hot-swappable, load-sharing, redundant AC PSUs or -48VDC PSUs
Hot Swappable fan tray with 3:1 fans.
Energy Efficiency: 170 W typical power consumption 48x10G DAC, 4x40GBASE-SR4
Management: Ethernet and console RJ-45 ports; USB storage port.
