Exicom Grid-Genset Hybrid Systems

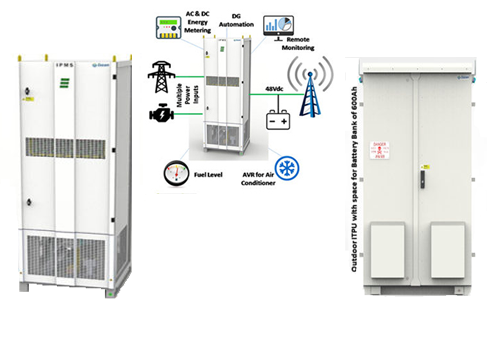

*Photo shown here is not to scale, shown for illustration only.
*Actual product may vary depending upon configuration and version.


Exicom’s hybrid solutions provide power to the telecom site with combination of AC Grid, DG Genset and are ideal for sites with poor grid or no grid availability. The system includes an automatic transfer switch (ATS), optional best phase selection, rectifiers, AC & DC distribution for one or multiple operators, and load & battery connections. Depending on the power, backup and battery life requirements, the system can be expanded with additional battery cabinets. Exicom’s M1000 controller does entire energy and site infrastructure management and system supervision.

Host of customizations are available to optimize automatic Genset operation as per customers’ requirements. Optional line conditioning Unit is provided for providing power to air conditioner in a telecom shelter. These systems are available in both indoor and outdoor configurations. With deployment of over 15,000 units in field, Exicom’s Hybrid Power Systems have proven to be energy-efficient and OPEX-optimized solution for ensuring lower CO2 emissions.

Download Product Datasheet:

Key Features:

  • Ideal for shared sites with multiple power inputs such as grid, DG genset and battery
  • Advanced M1000 controller platform for site infrastructure monitoring and control High efficiency rectifiers for energy savings and optimized cost of ownership
  • Wide Operating temperature range from -40 °C to +75 °C
  • Supports multiple load disconnects (up to 4) enabling optimization of battery capacity
  • ECO Mode function for rectifier enabling significant energy savings even at low loads
  • Advanced AC and DC energy metering options
  • DG Genset automation with advanced settable logic for optimized performance and operations
  • Optional Line Conditioning Unit (output 220V +/- 1%) for feeding power to air conditioner in an indoor site
  • Remote Access – Monitoring through web browser, TCP/IP, & SNMP as standard feature and optional Modem
  • Advanced Battery support with built in support for Li-ion charge profiles

Key Technical Specification:

 Input connection  3/2/1 Line +Neutral Earth
 Input Voltage  1X230/2X230/3X230 (VRMS) AC (L-N)
 AC Input Voltage  85 to 300Vac
 DC output Voltage Range  42 to 58Vdc
 Power Rating  up to 27KW
 Efficiency  96% (Rectifier Level)
 LVD  Battery/Individual Load Paths
 Battery Path Protection  Fuse/Circuit Breaker
 Surge Protection  Type 2 (class C) at System Level
 Automation  Available (DG, Mains, Battery Bank and Solar)
 Energy Metering  Grid Kwh, Genset Kwh, Battery Kwh, Individual Loads Kwh
 Best Phase Selection  Optional best phase selection for Aircon
 SVR  Optional 8Kva or 15 kVa isolated/Non isolated SVR
 Mounting  Floor Mount
 Controller  M-1000
 Rectifier Module  Serenity (3000W) /Quantum (3000W)
