Exicom Medium Power Systems

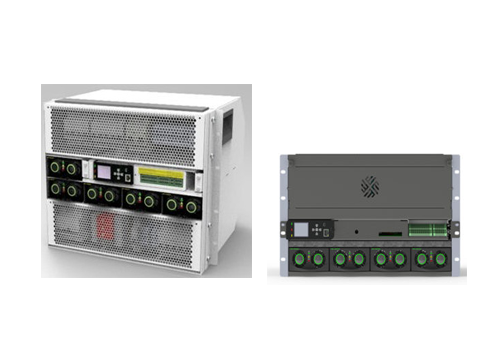

*Photo shown here is not to scale, shown for illustration only.
*Actual product may vary depending upon configuration and version.


Exicom’s Medium Power Systems deliver at every level – powerful, simple, front access, & configurable. They come in power range of 9KW-27KW and are completely scalable to accommodate future changing needs to make technology migration process painless. The system includes high efficiency rectifiers, load & battery LVD’s, AC connections, flexible DC distributions, multiple battery connection and Exicom’s advanced M1000 system controller to support complex energy management control at a cellular base station site. These systems support applications of 2G/3G/4G LTE cellular base station sites, shared telecom sites, hub sites, critical communications equipment in utilities & railways, and signalling infrastructure.

Download Product Datasheet:

Key Features:

  • 9KW – 27KW high power density solutions for space saving
  • High efficiency rectifiers for energy savings and optimized cost of ownership
  • Wide Operating temperature range from -40 °C to +75 °C, enabling CapEx and Opex
  • All connections easily accessible from top and all load and battery distribution is accessible from front
  • Supports multiple load disconnects (up to 4) enabling optimization of battery capacity
  • ECO Mode function for rectifier enabling significant energy savings even at low loads
  • Remote Access – Monitoring through web browser, TCP/IP, & SNMP as standard feature and optional Modem
  • Battery Management – Automatic battery tests in conjunction with battery midpoint or block voltage monitoring ensures early detection of battery problems
  • Advanced Battery support with built in support for Li-ion charge profile

Key Technical Specification:

Input  3L+N or 3x(L + N)
Input Voltage  3X230 Vrms AC (L-N)or 3 Phase 400Vac + N
DC Output Voltage  42V to 58Vdc (54Vdc Nominal)
Power Rating  12KW to 27KW
System Efficiency  95%
LVD  Battery & Load Disconnect (Optional)
Battery Path Protection  Fuse or Breaker
Surge Protection  Type 2 (class C) at System Level
Mounting  19” Rack (shelf) Mount
Controller / Rectifier  M-1000 / Quantum or Serenity Rectifier
Safety & EMI  IEC 60950; EN 55022 Class B
