Exicom Renewable Hybrid Systems

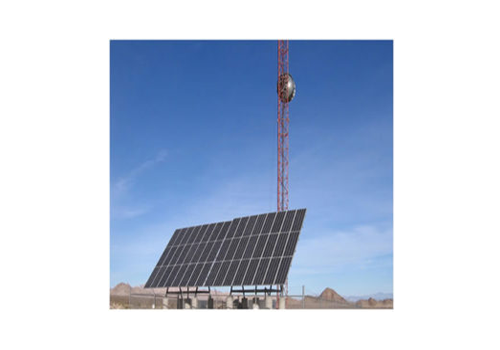

*Photo shown here is not to scale, shown for illustration only.
*Actual product may vary depending upon configuration and version.


Exicom’s Renewable Hybrid solutions provide power to the telecom site with combination of AC Grid, Solar Plant and DG Genset and are ideal for sites with poor grid or no grid availability. The system includes an automatic transfer switch (ATS), rectifiers, solar chargers, power distribution unit for solar power, AC & DC distribution for one or multiple operators, and load & battery connections. Depending on the power, backup and battery life requirements, the system can be expanded with battery cabinets. Exicom’s M1000 controller does entire energy and site infrastructure management, control of solar assets and system supervision.

These systems are available in both indoor and outdoor configurations. With deployment of over 1,000 units in field, Exicom’s Hybrid Power Systems have proven to be energy-efficient and OPEX-optimized solution for ensuring lower CO2 emissions.

Download Product Datasheet:

Key Features:

  • Ideal for poor grid or off grid sites with multiple power inputs such as solar, grid, DG genset and battery
  • Advanced M1000 controller platform site infrastructure monitoring and control and support for solar chargers. Intelligent software logic to use optimized source of power at any instant of time leading to low energy costs for site operator
  • High efficiency rectifiers & chargers for energy savings and optimized cost of ownership
  • Supports high DC voltage architecture to optimize installation costs. 99%+ MPPT efficiency ensures maximum use of available solar power
  • Wide Operating temperature range from -40 °C to +75 °C
  • ECO Mode function for rectifier enabling significant energy savings even at low loads
  • Advanced Renewable, AC and DC energy metering options
  • DG Genset automation with advanced settable logic for optimized performance and operations. Optional DG fuel sensor to monitor fuel level remotely
  • Remote Access – Monitoring through web browser, TCP/IP, & SNMP as standard feature and optional modem
  • Advanced Battery support with built in support for Li-ion charge profiles

Key Technical Specification:

 Input connection  3/2/1 Line +Neutral Earth
 Input Voltage  1X230/2X230/3X230 (VRMS) AC (L-N)
 AC Input Voltage  85 to 300Vac
 Solar Input  120 – 400Vdc
 DC output Voltage Range  42 – 58Vdc
 Solar Charger Output  2700W
 DC output Voltage Range  42 to 58Vdc
 Input connection DG  3/1 Line +Neutral
 Power Rating  up to 27 kW
 Efficiency  96% (Rectifier Level)
 LVD  Battery/Load (optional)
 Battery Path Protection  Fuse/Circuit Breaker
 Surge Protection  Type 2 (class C) at System Level
 Automation  Available (DG, Mains, Battery bank and Renewable)
 Mounting  Floor Mount
 Controller  M-1000
